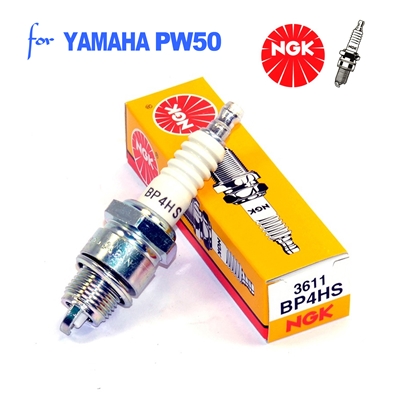

(PW50) - NGK Spark Plug BP4HS (#3611)

Parts Number: PW3PT-1108-NG4-00


NGK


  • NGK's standard plugs are constructed for longer life and optimum performance.

  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties

  • Corrugated ribs prevent flashover

  • Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer

  • Copper core aids in heat removal

  • Triple seals prevent leakage

  • Thread Size: 14mm
    Thread Pitch: 1.25mm
    Seat Type: Gasket
    Resistor: No
    Reach: 12.7mm (1/2")
    Hex Size: 13/16" (21mm)
    Terminal Type: Removable Nut
    Overall Height: JIS
    Gap: .028" (0.7mm)
    Center Electrode

    Material: Nickel
    Type: Standard
    Size: 2.5mm
    Projection: Projected
    Ground Electrode

    Material: Nickel
    Type: Standard
What's in the box:
  • 1 x NGK Spark Plug BP4HS (#3611)



Corresponding Genuine Parts Number

94701-00171-00

Compatible Genuine Models List

Yamaha model compatible list
1981 Y-Zinger PW50 H Yes     2000 PeeWee PW50 M1 Yes     2019 PW50 K2 Yes
1982 Y-Zinger PW50 J Yes 2001 PW50 N1 Yes 2020 PW50 L2 Yes
1983 Y-Zinger PW50 K Yes 2002 PW50 P Yes 2021 PW50 M2 Yes
1984 Y-Zinger PW50 L Yes 2003 PW50 R Yes
1985 Y-Zinger PW50 N Yes 2004 PW50 S1 Yes
1986 Y-Zinger PW50 S Yes 2005 PW50 T1 Yes
1987 Y-Zinger PW50 T Yes 2006 PW50 V Yes
1988 Y-Zinger PW50 U Yes 2007 PW50 W1 Yes
1989 Y-Zinger PW50 W Yes 2008 PW50 X Yes
1990 Y-Zinger PW50 A Yes 2009 PW50 Y Yes
1991 PeeWee PW50 B Yes 2010 PW50 Z Yes
1992 PeeWee PW50 D Yes 2011 PW50 A1 Yes
1993 PeeWee PW50 E Yes 2012 PW50 B1 Yes
1994 PeeWee PW50 F Yes 2013 PW50 D1 Yes
1995 PeeWee PW50 G Yes 2014 PW50 E1 Yes
1996 PeeWee PW50 H1 Yes 2015 PW50 F1 Yes
1997 PeeWee PW50 J1 Yes 2016 PW50 G2 Yes
1998 PeeWee PW50 K1 Yes 2017 PW50 H2 Yes
1999 PeeWee PW50 L1 Yes 2018 PW50 J2 Yes
SKU PW3PT-1108-NG4-00
Model # PW092
Brand NGK
Shipping Weight 0.1000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
Unit Of Measure ea
