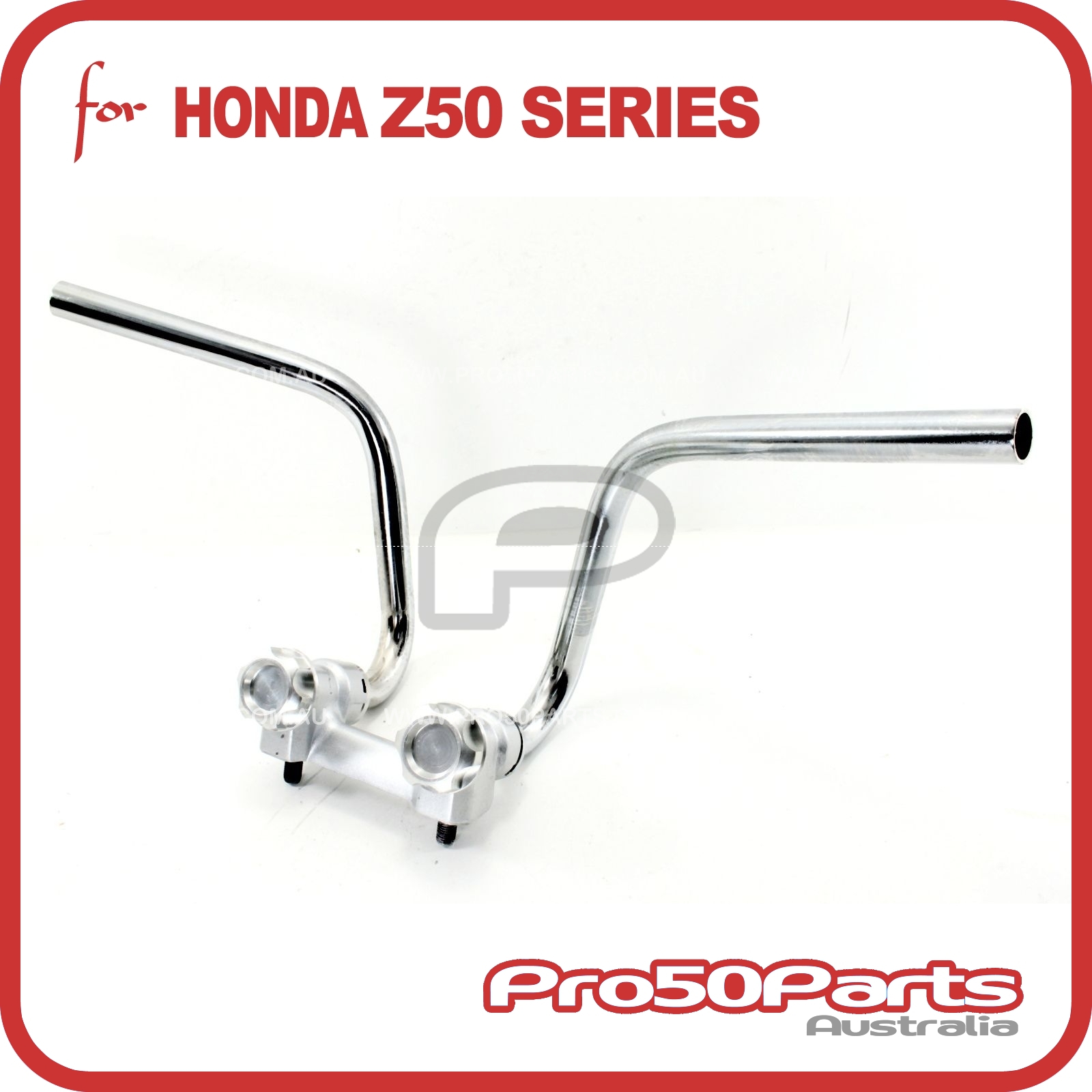

Handlebar Set (Traditional Foldable Bar, CNC Alloy Knob)

Parts Number: ZMAFT-2201-ALY-00


Honda Z50 Aftermarket Parts


KEY INFORMATIONS
 THIS IS AFTERMARKET PARTS FOR HONDA Z50 MONKEY BIKE.

PRODUCT DETAILS
  • Brand New Honda Z50 Handlebar Set (Traditional Foldable Bar, CNC Alloy Knob)
  • Excellent Quality Standard Handlebar Set (Traditional Foldable Bar, CNC Alloy Knob)
  • This aftermarket Traditional Foldable Handlebar Set can be used on Honda Z50A, Z50J and Gorilla bike.

TYPE Aftermarket Parts for Honda Z50 Monkey Bike WEIGHT 2.00kg
MATERIAL FINISH - SIZE 40mm (L) x 50mm (W) x 30mm (H)
INSTALLATION Easy DIY - Basic mechanical skill required  COLOUR Grey Silver

SPECIFICATION

* Refer photo above for dimension details.

(A) Total width of the bar: 560mm

(B) Total height of the bar: 245mm

(C) Distance (between two mounting bolts): 100mm

(D) Distance (Fold back): 150mm

(E) Knob Type: CNC Alloy



THIS PACKAGE INCLUDES
1 x Handle bar
1 x Handle bar Holder
1 x Handle bar Knob (2pcs/Set) (CNC Alloy)

RECOMMENDATIONS & ADVICES
Please note:
This handlebar set does not have open slot for throttle to go thru inside the bar. For Z50A model, it is required to replace the Throttle Housing Switch Block (#ZM013) on the handlebar as well.

Corresponding Genuine Parts Number

- - - - -

Compatible Genuine Models List

1967 Honda Z50M Yes     1979-1987 Honda Z50R No
1968-1969 Honda Z50A K0 Yes 1988-1999 Honda Z50R No
1969-1970 Honda Z50A K1 Yes
1970-1971 Honda Z50A K2 Yes 1978-1990 Honda Z50J (6v) Yes
      1991-2009 Honda Z50J (12v) Yes
1972 Honda Z50A K3 Yes 2009-2018 Honda Z50J (FI) Yes
1973 Honda Z50A K4 Yes
1974 Honda Z50A K5 Yes 1978-1988 Honda Z50G Gorilla (6v) No
1975 Honda Z50A K6 Yes 1998-2003 Honda Z50G Gorilla (12v) No
1976 Honda Z50A 76'/ Z50J1 Yes
1977 Honda Z50A 77'/ Z50J1 Yes - Honda Dax Yes
1978 Honda Z50A 78'/ Z50J1 Yes
SKU ZMAFT-2201-ALY-00
Brand PRO50PARTS
Shipping Weight 1.7000kg
Shipping Width 0.150m
Shipping Height 0.100m
Shipping Length 0.340m
Shipping Cubic 0.005100000m3
Unit Of Measure set
