Alloy Swing Arm (+5Cm Extended, Drum / Disk Brake)

Parts Number: ZMAFT-2401-ALY-05


Honda Z50 Aftermarket Parts


KEY INFORMATIONS
 THIS IS AFTERMARKET PARTS FOR HONDA Z50 MONKEY BIKE.

PRODUCT DETAILS
  • Brand New Honda Z50 Alloy Swing Arm (+5cm Extended, Drum / Disk Brake)
  • Excellent Quality Standard Alloy Swing Arm (+5cm Extended, Drum / Disk Brake)
  • This aftermarket Alloy Swing Arm is to be used for replacement on traditional Honda Monkey Z50 swing arm with an optional 10" wheel.

TYPE Aftermarket Parts for Honda Z50 Monkey Bike WEIGHT 0.90kg
MATERIAL FINISH CNC Alloy SIZE 430mm (L) x 220mm (W) x 90mm (H)
INSTALLATION Moderate - Experienced mechanical skill required  COLOUR Alloy Chrome Silver

SPECIFICATION

* Refer photo above for dimension details.

(A) Total length of swing arm: 375mm
(B) Distance between swing arm bolt & wheel axle (Min): 305mm

(C) Distance between swing arm & wheel axle (Max): 350mm
(D) Distance between swing arm bolt & rear shock: 245mm

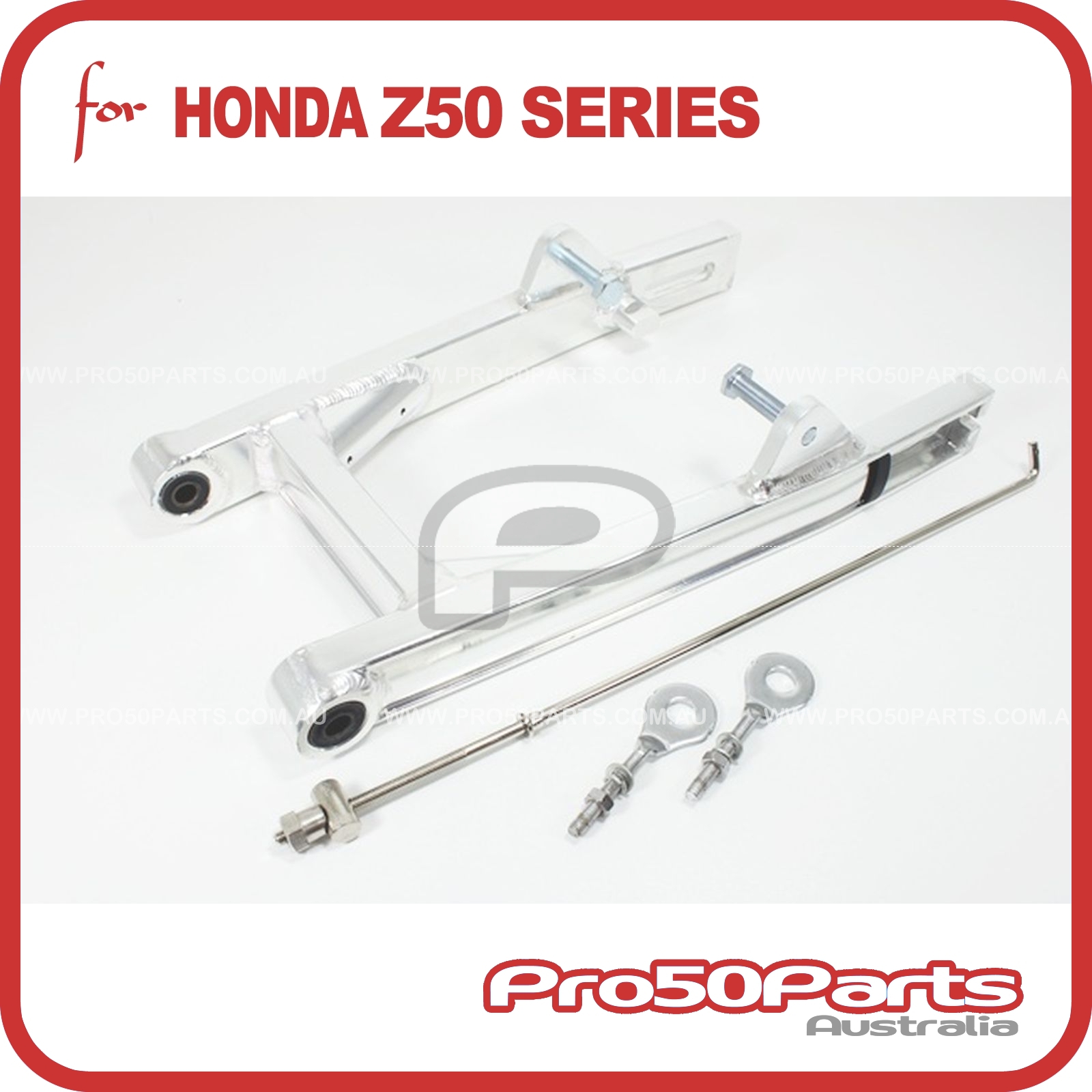

THIS PACKAGE INCLUDES
1 x Swing Arm
1 x Brake Rod
2 x Chain Tensioner

RECOMMENDATIONS & ADVICES
* It is recommend to be use conjunction with 10" Rear Wheel.

Corresponding Genuine Parts Number

- - - - -

Compatible Genuine Models List

1967 Honda Z50M No     1979-1987 Honda Z50R Yes
1968-1969 Honda Z50A K0 No 1988-1999 Honda Z50R Yes
1969-1970 Honda Z50A K1 No
1970-1971 Honda Z50A K2 No 1978-1990 Honda Z50J (6v) Yes
      1991-2009 Honda Z50J (12v) Yes
1972 Honda Z50A K3 Yes 2009-2018 Honda Z50J (FI) Yes
1973 Honda Z50A K4 Yes
1974 Honda Z50A K5 Yes 1978-1988 Honda Z50G Gorilla (6v) Yes
1975 Honda Z50A K6 Yes 1998-2003 Honda Z50G Gorilla (12v) Yes
1976 Honda Z50A 76'/ Z50J1 Yes
1977 Honda Z50A 77'/ Z50J1 Yes - Honda Dax No
1978 Honda Z50A 78'/ Z50J1 Yes
SKU ZMAFT-2401-ALY-05
Brand PRO50PARTS
Shipping Weight 2.5000kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
Unit Of Measure ea
