Front Fork Set (Usd, W/ Disc Brake Assy)

Parts Number: ZMAFT-2301-DISC-GD


Honda Z50 Aftermarket Parts


KEY INFORMATIONS
 THIS IS AFTERMARKET PARTS FOR HONDA Z50 MONKEY BIKE.

PRODUCT DETAILS

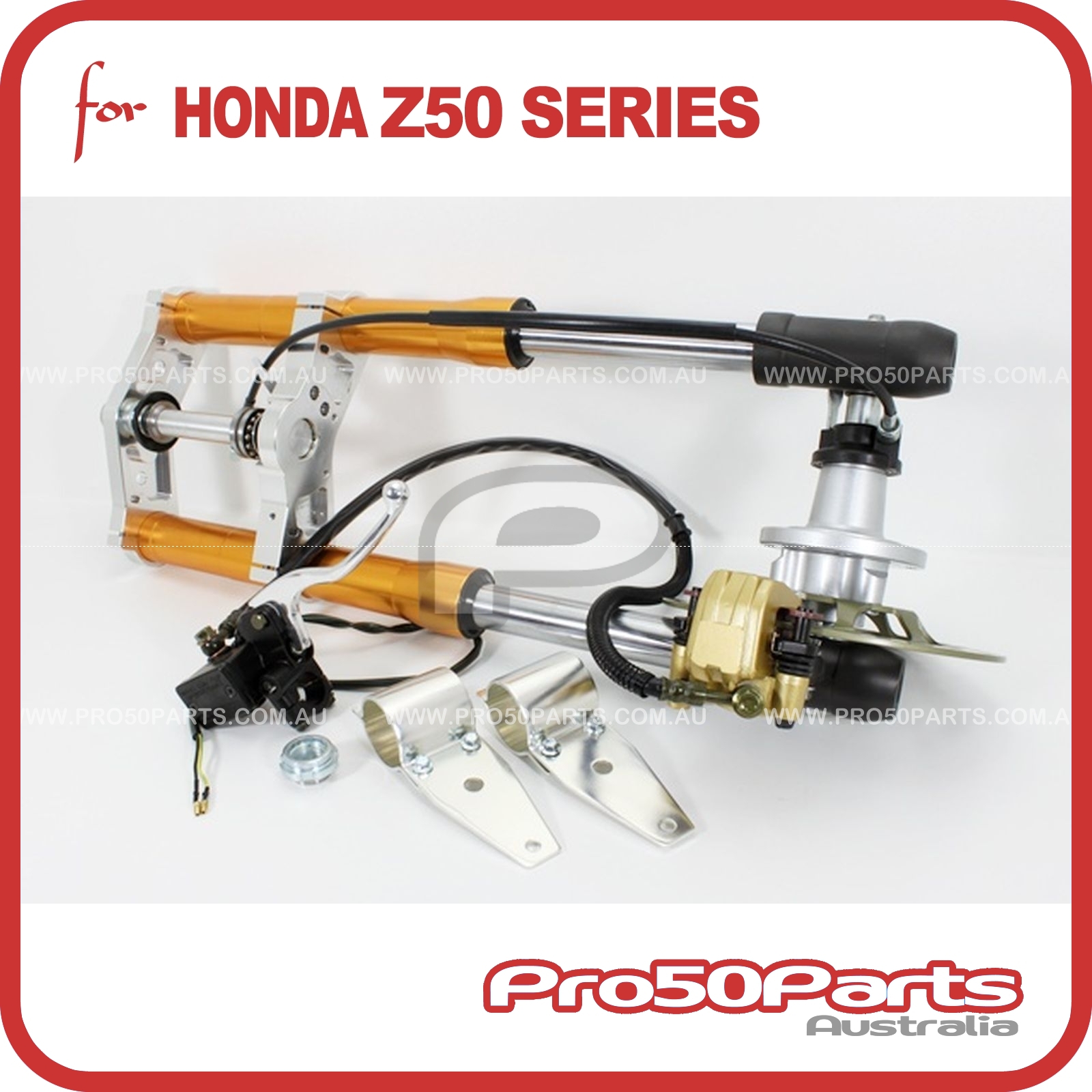

  • Brand New Honda Z50 FRONT FORK SET (USD, W/ DISC BRAKE ASSY)
  • Excellent Quality Standard Honda Z50 FRONT FORK SET (USD, W/ DISC BRAKE ASSY)
  • This After Market Spare Parts To Be Used On Modification Or Upgrade Of Honda Z50 ,Z50j, Z50r Style Replica, G50f, Golf50, Etc
  • Complete Set of USD Front Fork with Alloy Triple Clamps, Steerings, Front Disc Brake Assy, Front Wheel Hub

TYPE Aftermarket Parts for Honda Z50 Monkey Bike WEIGHT 13.00kg
MATERIAL FINISH - SIZE

-
INSTALLATION

Difficult - Professional mechanical skill required

 COLOUR

Light Golden Fork with CNC Alloy Clamps

SPECIFICATION

* Refer photo above for dimension details.

(A) Leg Overall Length - 670mm (From Top Of Leg To Bottom)

(B) Leg Length - 600mm (From Top To Wheel Axle Hole  Center)

(C) Width Btwn Two Inner Edges Of Fork Leg (Wheel Axle Direction) - 162mm

(D) Width Btwn Two Outer Edges Of Fork Leg (Wheel Axle Direction) - 238mm

(E) Fork Leg Diameter - Upside 45mm / Downside 33mm

(F) Front Disc Diameter - 220mm

(G) Front Wheel Axle Diameter - 12mm

(H) Clamp Holder Bolts Diameter - 10mm

(I) Distance Of Clamp Holders (HC-HC) - 100mm

(J) Wheel Hub Bolt Hole Diameter (HC To HC) - 91.5mm  (Fit With Standard Monkey 50 Wheel Rim)

(K) Wheel Hub Rim Bolt Diameter - 8mm ( 4bolts)





THIS PACKAGE INCLUDES
1 x

Triple Clamps With Steering , Including Steering Lock, Steering Bearings, Steering Stem.
1 x Front Fork Legs (set)
1 x Front Wheel Hub (for disc brake)
1 x Front Wheel Axle , Wz Spacer, Speedo Cover & Lock.
1 x Front Brake Assy (Including Reserve, Lever, Hose, Caliper, Brake Shoes, Disc And Disc Bolts)
1 x Headlight Bracket (Holders Clamped On The Fork) (Not Included, But Optional To Buy With Extra $25.00)

RECOMMENDATIONS & ADVICES
Please note:
Recommended to extended Swingarm or 10" Wheel

Corresponding Genuine Parts Number

- - - - -

Compatible Genuine Models List

1967 Honda Z50M No     1979-1987 Honda Z50R Yes
1968-1969 Honda Z50A K0 Yes 1988-1999 Honda Z50R Yes
1969-1970 Honda Z50A K1 Yes
1970-1971 Honda Z50A K2 Yes 1978-1990 Honda Z50J (6v) Yes
      1991-2009 Honda Z50J (12v) Yes
1972 Honda Z50A K3 Yes 2009-2018 Honda Z50J (FI) Yes
1973 Honda Z50A K4 Yes
1974 Honda Z50A K5 Yes 1978-1988 Honda Z50G Gorilla (6v) Yes
1975 Honda Z50A K6 Yes 1998-2003 Honda Z50G Gorilla (12v) Yes
1976 Honda Z50A 76'/ Z50J1 Yes
1977 Honda Z50A 77'/ Z50J1 Yes
1978 Honda Z50A 78'/ Z50J1 Yes
SKU ZMAFT-2301-DISC-GD
Brand PRO50PARTS
Shipping Weight 13.0000kg
Shipping Width 0.760m
Shipping Height 0.270m
Shipping Length 0.290m
Shipping Cubic 0.059508000m3
Unit Of Measure set
